Pilote de stockage ZFS

ZFS est un système de fichiers et gestionnaire de volumes logiques de nouvelle génération combiné. ZFS prend en charge de nombreuses fonctionnalités avancées telles que la protection des données, les snapshots, les clones et la déduplication.

Le pilote de stockage zfs de Docker tire parti de nombreuses fonctionnalités ZFS pour la gestion des images et conteneurs. Cependant, le pilote de stockage zfs possède les exigences les plus strictes en termes de configuration et de maintenance.

Cette page fait référence au pilote de stockage ZFS de Docker sous le nom zfs et au système de fichiers ZFS global sous le nom ZFS.

Note

ZFS sur Linux (ZoL) n'est actuellement pas recommandé pour un usage en production, sauf si vous avez de l'expérience avec ZoL. Les utilisateurs de FreeBSD et d'autres systèmes utilisant ZFS comme système de fichiers par défaut peuvent utiliser le pilote de stockage zfs.

Prérequis

• ZFS nécessite un périphérique de stockage de bloc dédié. Les périphériques loopback ne sont PAS pris en charge.
• Changez le pilote de stockage rend tous les conteneurs existants inaccessibles sur le système local.

Configurer Docker avec le pilote de stockage ZFS

Cette section contient un exemple détaillé qui montre comment utiliser ZFS comme pilote de stockage Docker. L'exemple suppose que vous ayez deux dispositifs de stockage de bloc bruts à /dev/xvdb et /dev/xvdc.

Instructions préliminaires

1. Arrêtez Docker.

   $ sudo systemctl stop docker


2. Sauvegardez le contenu de /var/lib/docker.

   $ sudo cp -au /var/lib/docker /var/lib/docker.bk


   Pour rétablir le pilote de stockage précédent si quelque chose va mal, supprimez le contenu de /var/lib/docker et remplacez-le par le contenu de /var/lib/docker.bk.

Installer ZFS sur Ubuntu 16.04 ou 18.04

1. Installez les paquets zfsutils-linux.

   Sur Ubuntu 16.04 et 18.04, vous pouvez installer ZFS à partir du dépôt de distribution par défaut.

   $ sudo apt update

   $ sudo apt install zfsutils-linux


Configure Docker with the zfs storage driver

1. Stop Docker.

2. Copy the contents of /var/lib/docker/ to /var/lib/docker.bk and remove the contents of /var/lib/docker/.

   $ sudo cp -au /var/lib/docker /var/lib/docker.bk

   $ sudo rm -rf /var/lib/docker/*


3. Create a new zpool on your dedicated block device or devices, and mount it into /var/lib/docker/. Be sure you have specified the correct devices, because this is a destructive operation. This example adds two devices to the pool.

   $ sudo zpool create -f zpool-docker -m /var/lib/docker /dev/xvdf /dev/xvdg


   The command creates the zpool and names it zpool-docker. The name is for display purposes only, and you can use a different name. Check that the pool was created and mounted correctly using zfs list.

   $ sudo zfs list

   NAME           USED  AVAIL  REFER  MOUNTPOINT
   zpool-docker    55K  96.4G    19K  /var/lib/docker


4. Configure Docker to use zfs. Edit /etc/docker/daemon.json and set the storage-driver to zfs. If the file was empty before, it should now look like this:

   {
     "storage-driver": "zfs"
   }

   Save and close the file.

5. Start Docker. Use docker info to verify that the storage driver is zfs.

   $ sudo docker info
     Containers: 0
      Running: 0
      Paused: 0
      Stopped: 0
     Images: 0
     Server Version: 17.03.1-ce
     Storage Driver: zfs
      Zpool: zpool-docker
      Zpool Health: ONLINE
      Parent Dataset: zpool-docker
      Space Used By Parent: 249856
      Space Available: 103498395648
      Parent Quota: no
      Compression: off
   <...>


Manage zfs

Increase capacity on a running device

To increase the size of the zpool, you need to add a dedicated block device to the Docker host, and then add it to the zpool using the zpool add command:

$ sudo zpool add zpool-docker /dev/xvdh

Limit a container's writable storage quota

If you want to implement a quota on a per-image/dataset basis, you can set the size storage option to limit the amount of space a single container can use for its writable layer.

Edit /etc/docker/daemon.json and add the following:

{
  "storage-driver": "zfs",
  "storage-opts": ["size=256M"]
}

See all storage options for each storage driver in the daemon reference documentation

Save and close the file, and restart Docker.

How the zfs storage driver works

ZFS uses the following objects:

• filesystems: thinly provisioned, with space allocated from the zpool on demand.
• snapshots: read-only space-efficient point-in-time copies of filesystems.
• clones: Read-write copies of snapshots. Used for storing the differences from the previous layer.

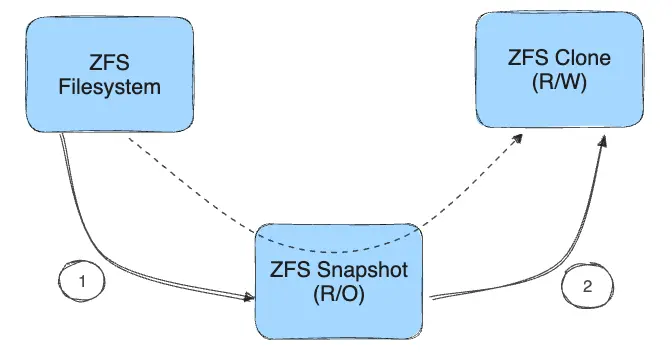

The process of creating a clone:

1. A read-only snapshot is created from the filesystem.
2. A writable clone is created from the snapshot. This contains any differences from the parent layer.

Filesystems, snapshots, and clones all allocate space from the underlying zpool.

Image and container layers on-disk

Each running container's unified filesystem is mounted on a mount point in /var/lib/docker/zfs/graph/. Continue reading for an explanation of how the unified filesystem is composed.

Image layering and sharing

The base layer of an image is a ZFS filesystem. Each child layer is a ZFS clone based on a ZFS snapshot of the layer below it. A container is a ZFS clone based on a ZFS Snapshot of the top layer of the image it's created from.

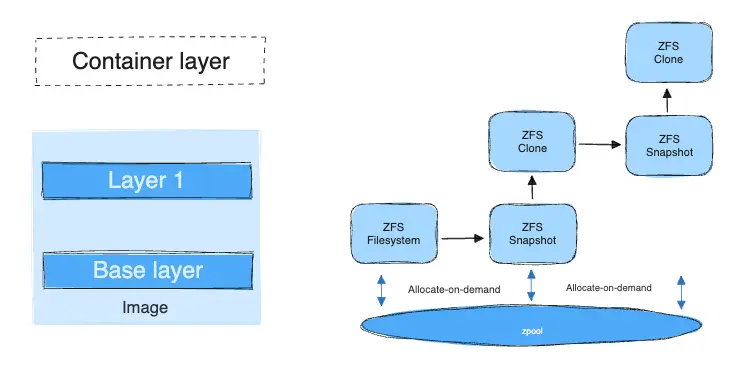

The diagram below shows how this is put together with a running container based on a two-layer image.

When you start a container, the following steps happen in order:

1. The base layer of the image exists on the Docker host as a ZFS filesystem.

2. Additional image layers are clones of the dataset hosting the image layer directly below it.

   In the diagram, "Layer 1" is added by taking a ZFS snapshot of the base layer and then creating a clone from that snapshot. The clone is writable and consumes space on-demand from the zpool. The snapshot is read-only, maintaining the base layer as an immutable object.

3. When the container is launched, a writable layer is added above the image.

   In the diagram, the container's read-write layer is created by making a snapshot of the top layer of the image (Layer 1) and creating a clone from that snapshot.

4. As the container modifies the contents of its writable layer, space is allocated for the blocks that are changed. By default, these blocks are 128k.

How container reads and writes work with zfs

Reading files

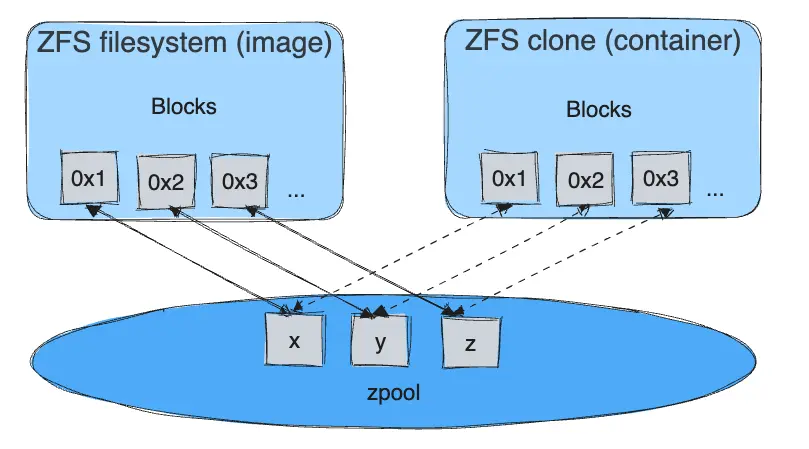

Each container's writable layer is a ZFS clone which shares all its data with the dataset it was created from (the snapshots of its parent layers). Read operations are fast, even if the data being read is from a deep layer. This diagram illustrates how block sharing works:

Writing files

Writing a new file: space is allocated on demand from the underlying zpool and the blocks are written directly into the container's writable layer.

Modifying an existing file: space is allocated only for the changed blocks, and those blocks are written into the container's writable layer using a copy-on-write (CoW) strategy. This minimizes the size of the layer and increases write performance.

Deleting a file or directory:

• When you delete a file or directory that exists in a lower layer, the ZFS driver masks the existence of the file or directory in the container's writable layer, even though the file or directory still exists in the lower read-only layers.
• If you create and then delete a file or directory within the container's writable layer, the blocks are reclaimed by the zpool.

ZFS and Docker performance

There are several factors that influence the performance of Docker using the zfs storage driver.

• Memory: Memory has a major impact on ZFS performance. ZFS was originally designed for large enterprise-grade servers with a large amount of memory.

• ZFS Features: ZFS includes a de-duplication feature. Using this feature may save disk space, but uses a large amount of memory. It is recommended that you disable this feature for the zpool you are using with Docker, unless you are using SAN, NAS, or other hardware RAID technologies.

• ZFS Caching: ZFS caches disk blocks in a memory structure called the adaptive replacement cache (ARC). The Single Copy ARC feature of ZFS allows a single cached copy of a block to be shared by multiple clones of a With this feature, multiple running containers can share a single copy of a cached block. This feature makes ZFS a good option for PaaS and other high-density use cases.

• Fragmentation: Fragmentation is a natural byproduct of copy-on-write filesystems like ZFS. ZFS mitigates this by using a small block size of 128k. The ZFS intent log (ZIL) and the coalescing of writes (delayed writes) also help to reduce fragmentation. You can monitor fragmentation using zpool status. However, there is no way to defragment ZFS without reformatting and restoring the filesystem.

• Use the native ZFS driver for Linux: The ZFS FUSE implementation is not recommended, due to poor performance.

Performance best practices

• Use fast storage: Solid-state drives (SSDs) provide faster reads and writes than spinning disks.

• Use volumes for write-heavy workloads: Volumes provide the best and most predictable performance for write-heavy workloads. This is because they bypass the storage driver and do not incur any of the potential overheads introduced by thin provisioning and copy-on-write. Volumes have other benefits, such as allowing you to share data among containers and persisting even when no running container is using them.
